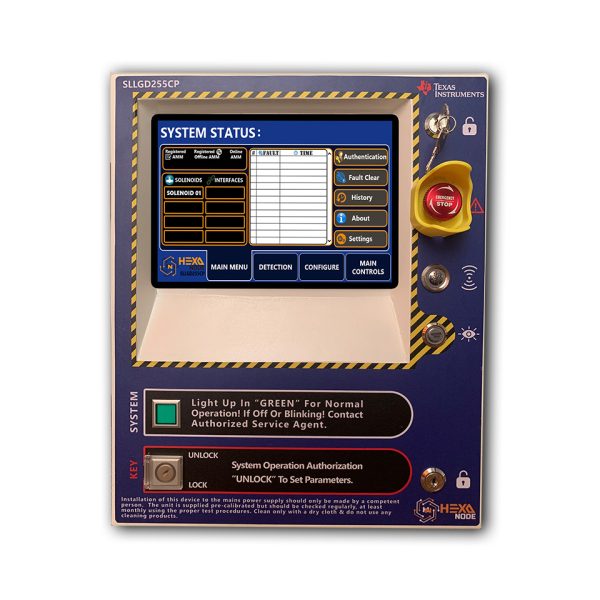

LPG Main Detection Panel

The addressable control panel, HXFA-255 / SLLGD255CP will gives the easy addressing facility through the ModBus RTU protocol up to 255 Intelligent addressable monitor modules (AMM) which connected to LPG detectors. It is a microprocessor-based transmitter designed for use with AMM modules armed with LPG gas detectors. All SLLGD255CP electronics are contained within the dust proof (IP65) housing so that installation can be processed at the sensor site or any dust environment. The panel uses 13 no’s of function Mod bus protocol via RTU bus output to interface to the AMM modules. SLLGD255CP Hexa:Node® will transmit the data using Modbus RTU protocol.

Specifications

Power : 88 to 132V AC (110V AC Selected) or 176 to 264V AC (230V AC Selected) 47 to 63Hz / 150 Watts /  DC Option Available

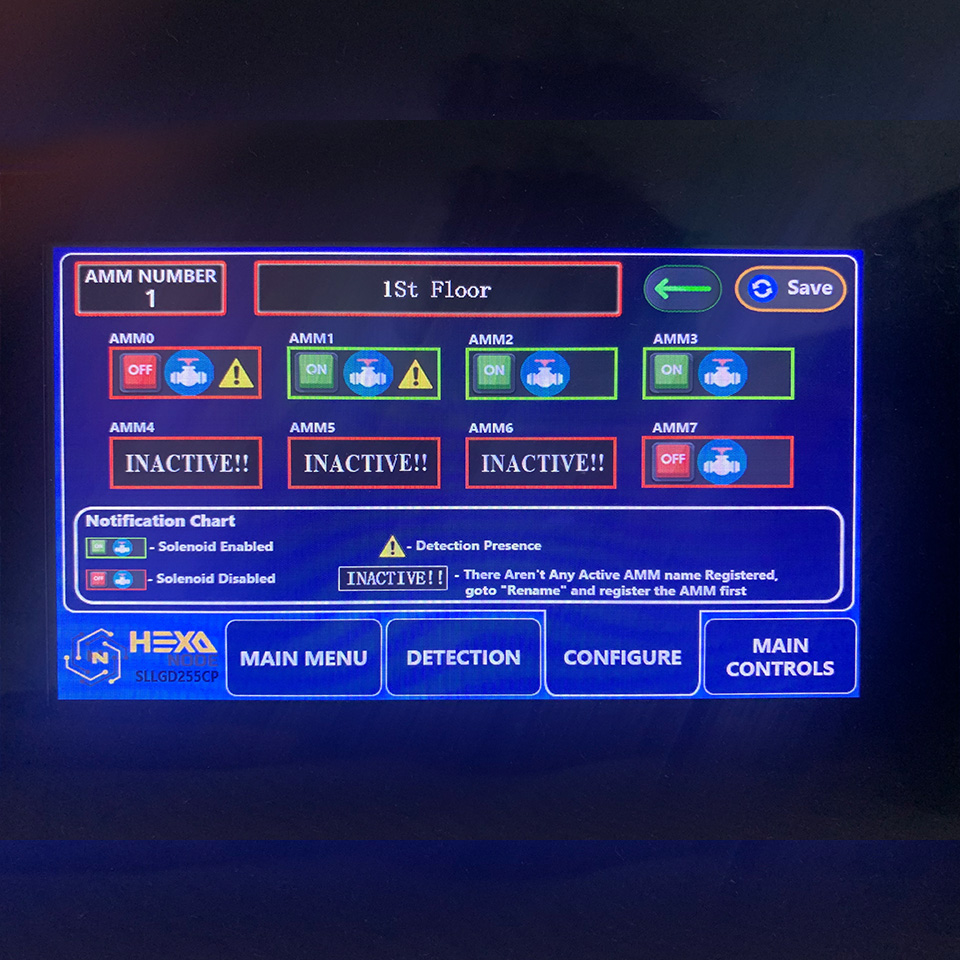

Display :  7″ full Colour Display

Operating Temperature : 0 °C to 55 °C

Operating Humidity : Up to 95% non – condensing

Resolution :  0.00% or ppm Range Dependent

Update Rate : 1 Second

Size (mm) :  255 (H) x 265 x (W) x 100 (D)

Protection Standard : IP 54

Inputs : Up to 4 or up to 8 x 4-20mA loops

Inputs :  8 analogue 4-20mA loops

2 x RS485 data highways for up to 255 SLLGD88AM

Outputs (Standard) : 3 x configurable SPCO relays (7 Amp non conductive load)

1 x fault SPCO relays (7 Amp non conductive load)

1 x solid state audio/sounder 24VDC

1 x solid state Visual/flasher 24VDC

Outputs (Optional) : Additional 8 way relay cards, I/O Nodes

Gas Detectors

Check ratings for maximum I/O from PSU

Optional Equipment : Battery backup 1.2Ah or 2.4Ah

CE Declaration : BS EN 61000-6-4 EMC Compatibility ‘Emissions’

BS EN 61000-6-2:2001 EMC Compatibility ‘Immunity’

BS EN 61010-1:2001 Safety requirements, electrical equipment

Weight : 3.65 KG
